21 XB ELITE | SPECIFICATIONS
Length
21' 4"
Beam
99"
Transom Height
20"
Max Horsepower
250 HP
Side Height
26"
Bottom Width
69"
Approximate Draft
11"
Aluminum - 5052 Marine Grade Alloy
0.125
Deadrise @ Transom
13°
Deadrise @ Entry
45°
Approximate Boat Weight
1,594 lbs
Fuel Capacity
43 Gallons*
Aft Divided Livewell
28 Gallons
Center Rod Box w/ Dual Monster Tubes
8' Rods
Aft Insulated Fiberglass Storage Boxes
50 Quarts each
Port Rod Box
Five 7' 1/2" Rods
Forward Insulated Cooler/Day Box
37 Quarts
Persons and Total Persons Weight
4/775 lbs
Max Weight Capacity
1800 lbs
Length on Trailer
***
*The usable fuel capacity will be affected by factors such as EPA-required fuel system components, temperature, and boat loading which may reduce the usable fuel capacity by 10%.

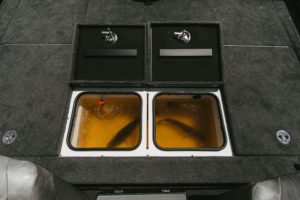

21 XB ELITE | AFT LIVEWELL

21 XB ELITE | PERFORMANCE
BY THE NUMBERS
Brand
Yamaha
Model
VF250 LB SHO
Horsepower
250 hp
Induction
EFI/DOHC
Displacement
4.2 L
Weight (Estimated)
567 lbs
Gear Ratio
1.75:1
